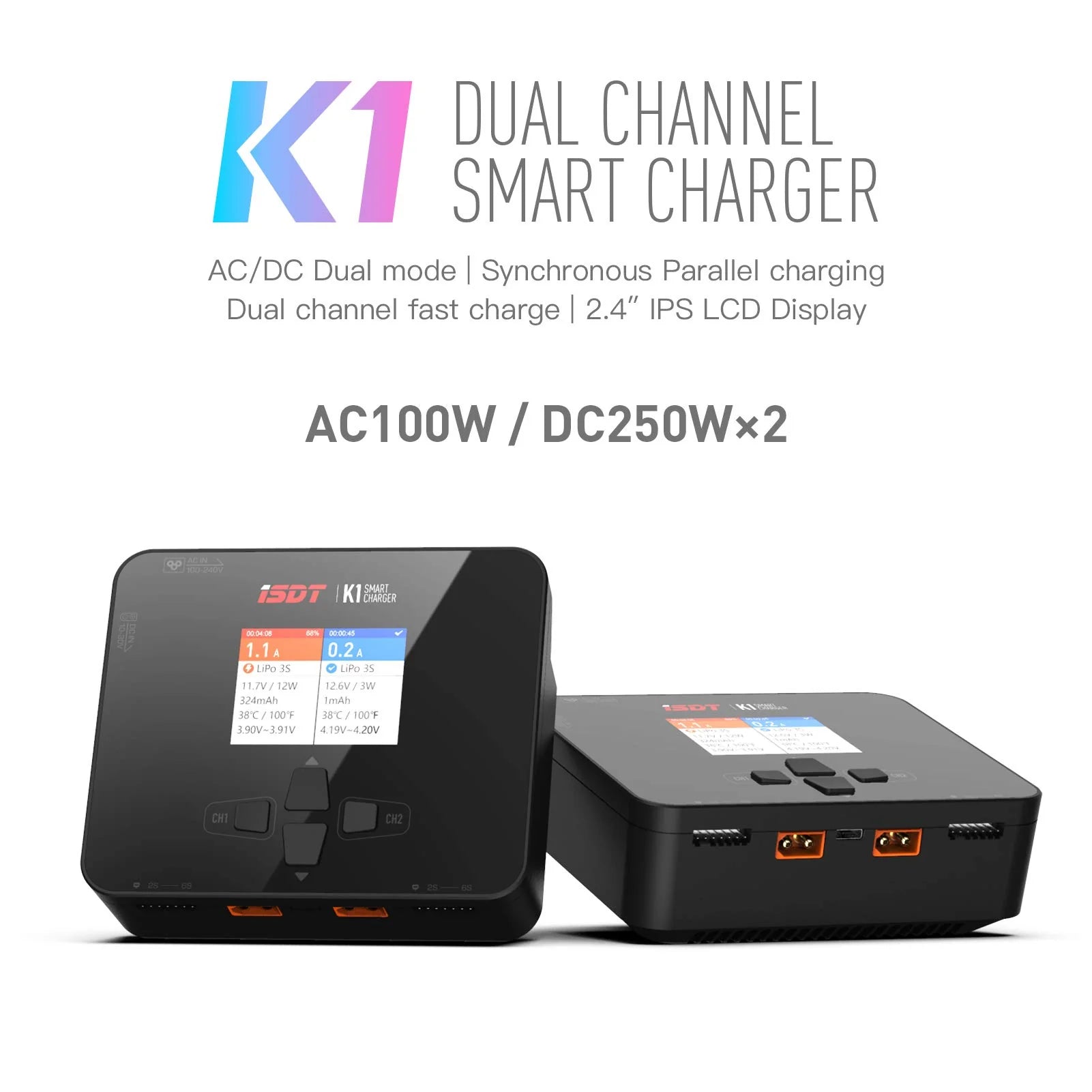

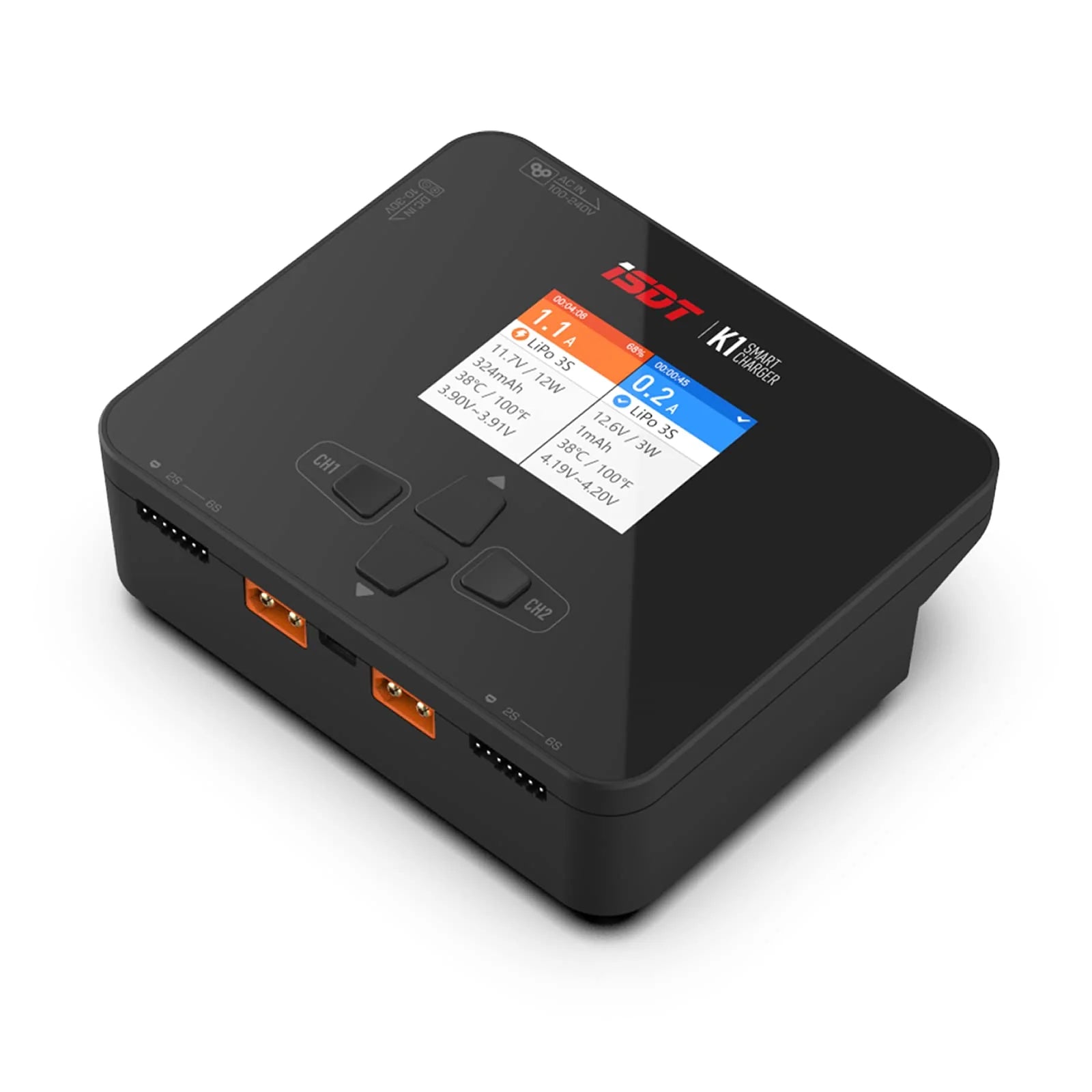

ISDT K1 Lipo Battery Balance Smart Charger - 1-6S / AC / 100W / DC 2 x 250W 10A

ISDT K1 Lipo Battery Balance Smart Charger - 1-6S / AC / 100W / DC 2 x 250W 10A

√ ISDT is known for its ergonomically designed, small and state-of-the-art chargers and accessories. The K1 Smart Charger continues this great family tree of efficient and easy-to-use chargers.

√√ Dual-channel charger: The ISDT K1 is an easy-to-use, straightforward charger with two inputs (AC/DC) that can charge two batteries at the same time. It can charge 2 x 6S LiPo, LiIon, LiFe, or LiHV, 10S Pb, or 16S NiMh/NiCd battery packs with up to 10A.

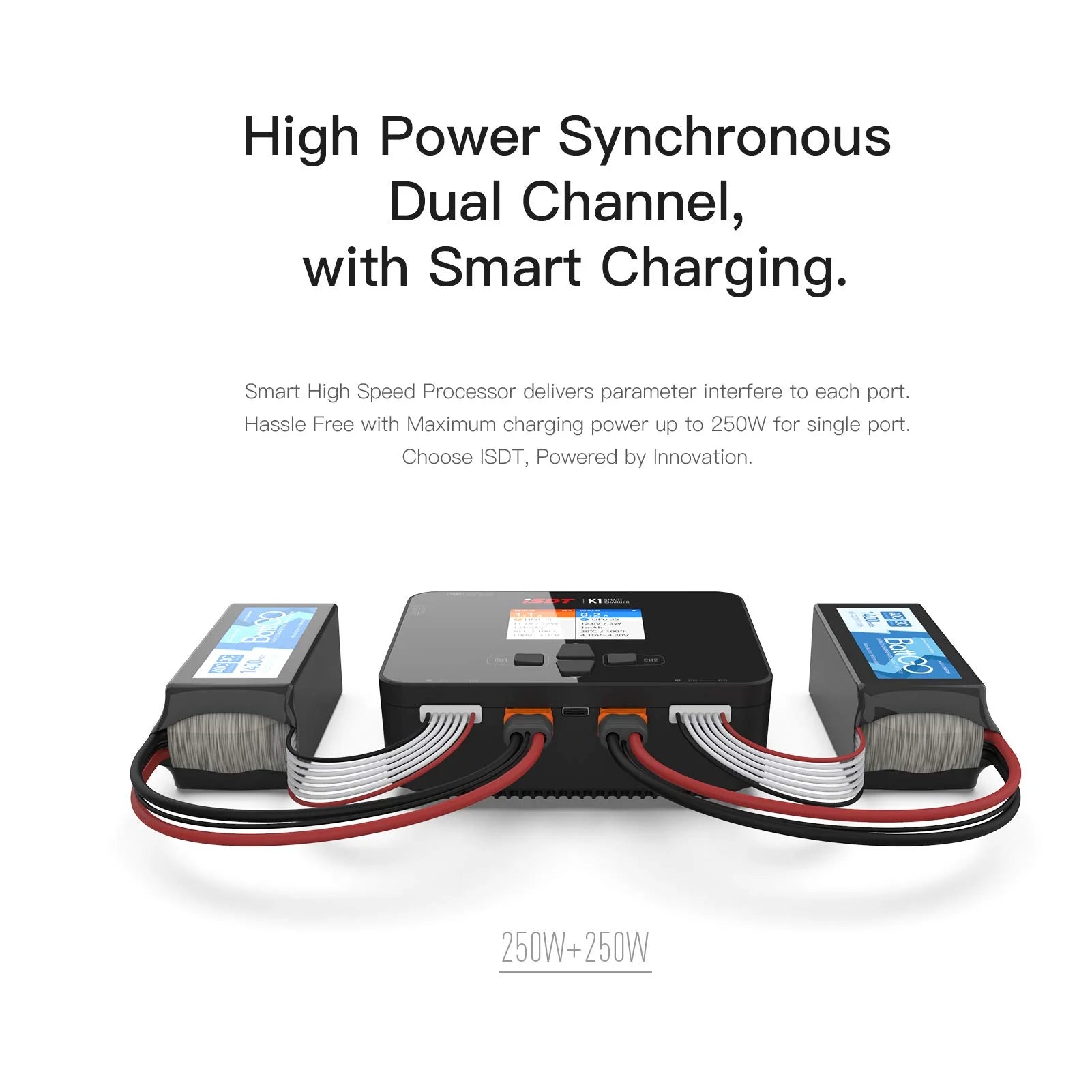

√√ Intelligent independent charging system: Each channel can work independently, that is, two batteries of different sizes or different chemistry can be charged at the same time. You can even combine both channels in parallel for synchronous equilibrium charging to achieve even higher power output. The maximum charging current for alternating current is 100 W per channel, for direct current it is 250 W per channel.

√√ Port Design: Outputs include 2 x XT60 connectors for charging, 2 x XH-JST 6S balance ports and a micro USB port for updates. The 10~30V (DC) power input connects to the charger via an XT60 socket, and a UK plug power cord is included for AC operation.

√√ Strong cooling: To ensure better cooling, the device has a carefully designed and optimized internal structure. In conjunction with a ball-bearing fan, this ensures active cooling.
Description of the product


Characteristics:

• Operates with DC and AC power sources
• Can charge 2 battery packs independently
• Can charge 2 batteries of different chemistry at the same time
• Charges 2 batteries with up to 250W per channel when powered by DC or 100W per channel when powered by AC

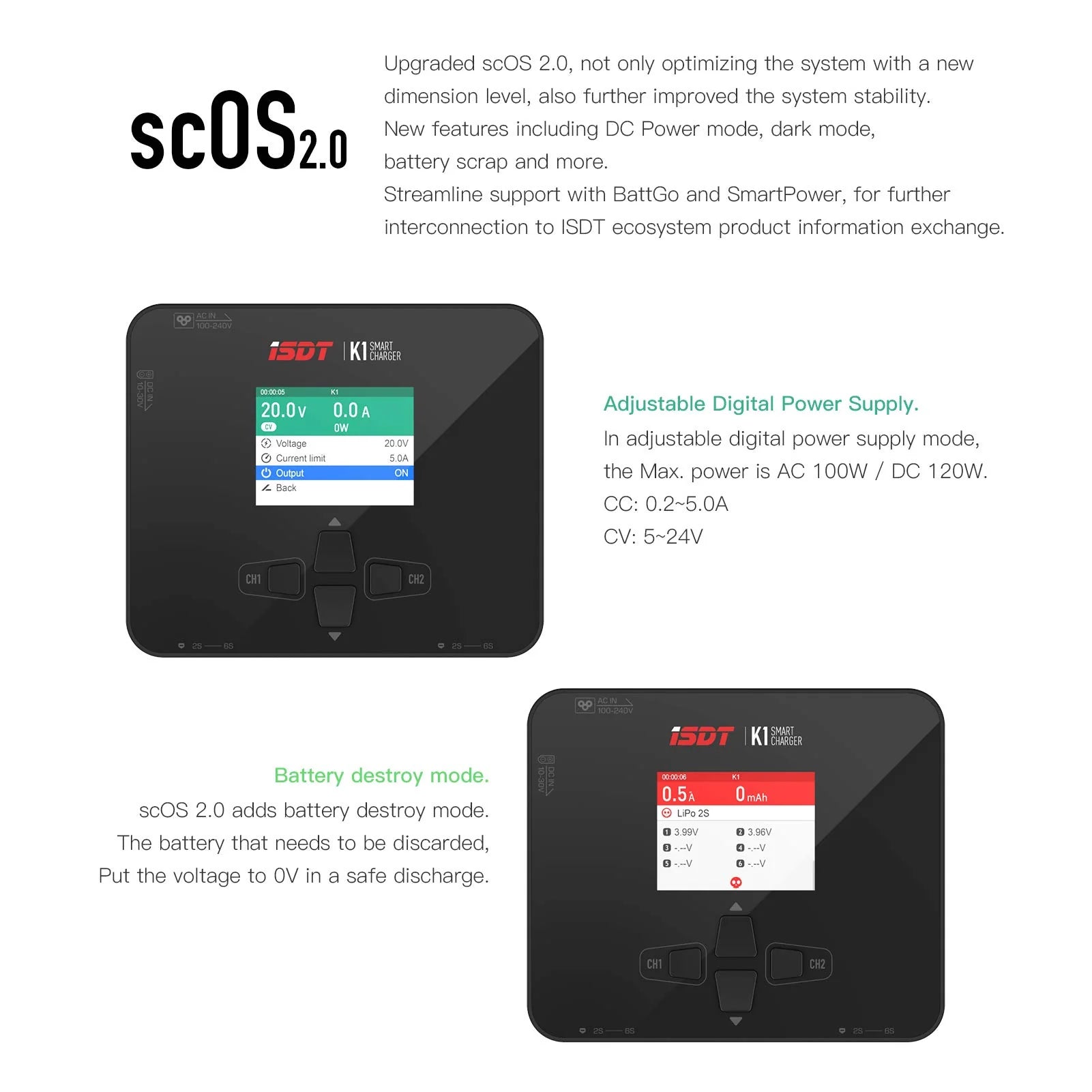

• Easy programming at the push of a button
• Color LCD display with wide viewing angle
• Ball-bearing fan for efficient, active cooling

Technical data:

• Model: ISDT K1 Dual Port 1~6S 100~250W x 2 AC/DC Smart Charger
• Input voltage: 10~30V DC/100~240V AC
• Output voltage: 1~26.4V DC
• Maximum input current: 20A
• Charging current: 0.2~10A x 2
• Maximum charging power: 100W AC/250W DC x 2
• Compensating current: 0.5A/cell
• Supported battery types and cell numbers: 1~6S LiPo/LiIon/LiFe/LiHV, 1~10S Pb, 1~16S NiCd/NiMh
• Display: color LCD
• Operating temperature: 0~40°C
• Storage temperature: -20~60°C
• Dimensions: 135x115x49mm
• Weight: 485g

Contain:

1 x ISDT K1 Dual Port 1~6S 100~250W x 2 AC/DC Smart Charger
1 x AC Power Cord/Plug
