Hobbywing QuicRun WP 1060 Brushed ESC - HW30120201

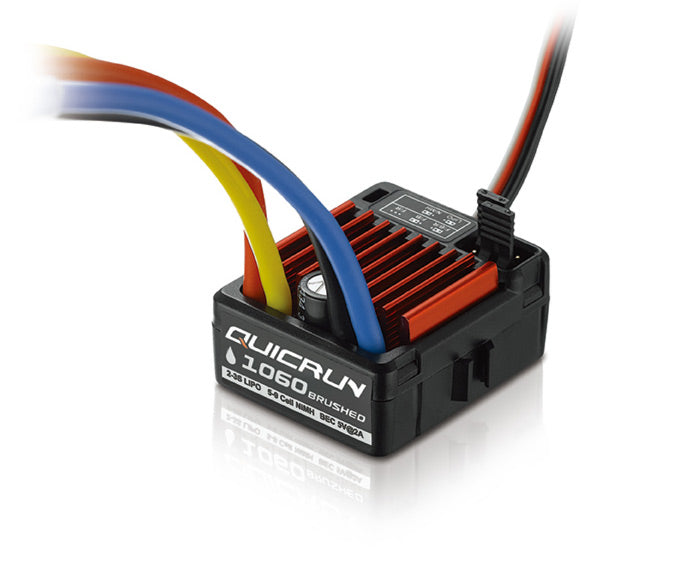

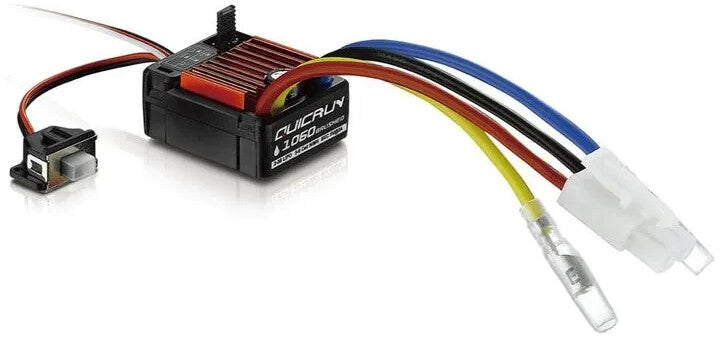

Hobbywing QuicRun WP 1060 Brushed speed controller
This ESC has been specially designed for newcomers and intermediate modelers. It not only continues the outstanding quality of HOBBYWING products, but also simplifies operation.

Suitable for all weather conditions
The waterproof and dustproof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without the risk of damage from water or dust.

High reliability & durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed not only to deliver high performance, but also to protect the ESC circuit from overload.

Easy to use
This ESC features auto throttle calibration and jump cap parameter setting, making it easy to use, especially for beginners.

Specifications:
Type: 1/10, brushed
Waterproof: Yes
Size: 36.5 x 32 x 18mm
Weight: 39g
Continuous/peak current: 60A/360A
Input: 2-3S LiPo/6-9 cells NiMH
BEC output: Switch mode: 6V/3A
Input wires: 16AWG-100mm
Output wires: 16AWG-100mm
Input connectors: TAMIYA
Output Connectors: 4mm Bullet Connectors (Female)
Fan: No

ESC Programming via:
SET button on ESC: Not supported
LED Program Box: Not supported
LCD programme box: Not supported
WiFi module: Not supported
Program Port: Jumper cap
Firmware upgrade: Not supported

Applications:
Vehicles: 1/10th touring cars/buggies/trucks/rock crawlers with brushed motors
KV rating/T count: 2S LiPo: T≥12T / 3S LiPo: T≥18T (540/550 size motors)
