MKS
MKS Servo HBL550L (0.059s/15kg/7.4V) Brushless Low Profile
Akzeptierte Zahlungsmethoden
An Lager, versandbereit
Kurz schreiben, wir helfen sofort
Fragen? Wir sind persönlich für dich da.
Antwort meist innerhalb weniger Minuten während der Öffnungszeiten.
Beschreibung

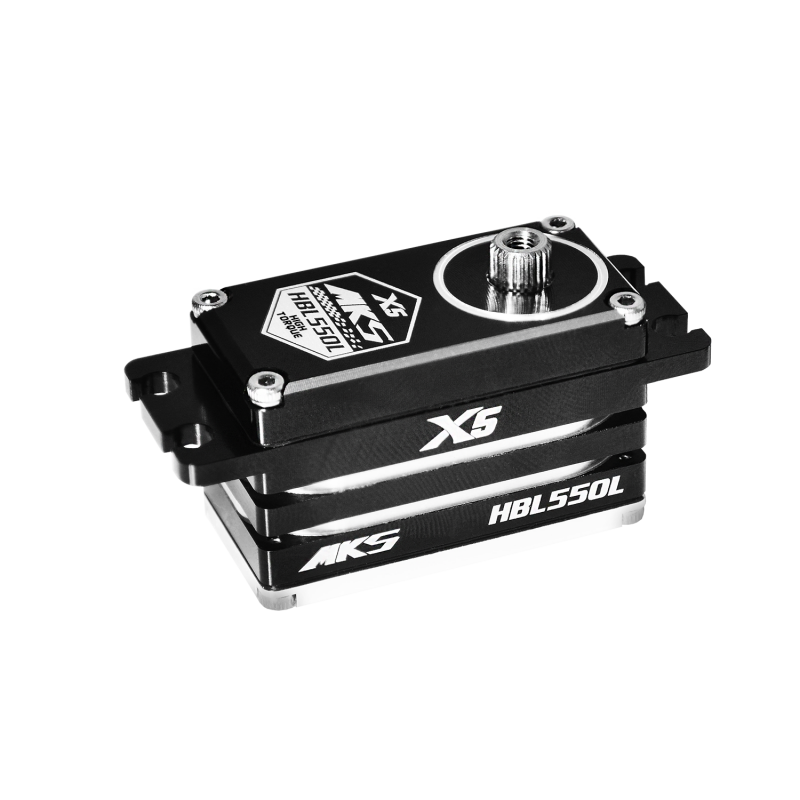

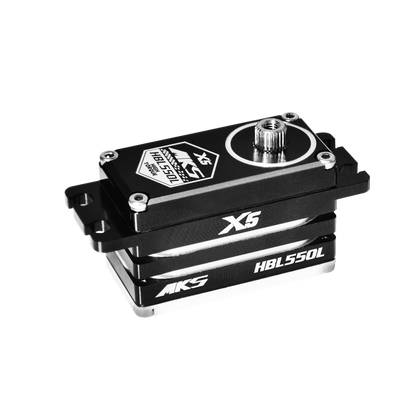

MKS Servo HBL550L (0.059s/15kg/7.4V) Brushless Low Profile
MKS Servo is a manufacturer from Taiwan specializing in high quality and precise servo motors for RC model building, known for their performance and reliability in competitive environments. Located in the high-price segment, MKS Servo offers innovative servo technology that ensures high positioning accuracy and longevity for demanding hobbyists and professionals. Their products are recognized in the RC community for top quality and outstanding performance.
| SERVO SPECIFICATION | |
| Torque (kg-cm) | 9 (4.8V) / 12 (6.0V) / 15 (7.4V) |
| Torque (oz-in) | 124.9 (4.8V) / 166.6 (6.0V) / 208.3 (7.4V) |
| speed | 0.09s (4.8V) / 0.073s (6.0V) / 0.059s (7.4V) |
| Stall Current (at locked load) | 2.8A (4.8V) / 3.4A (6.0V) / 4.1A (7.4V) |
| Working voltage | 4.8V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Deadband | 0.001 ms (default) |
| Bearing | 2x ball bearings |
| Gear | Metal Alloy Gear |
| engine | Brushless motor |
Spezifikationen
- Hersteller
- MKS
- Tags
- 0.59s, 15kg, 7.4V, elektronik, low profile, servoweek
- SKU
- HBL550L
