SRT Servo CL6030 1/10 & 1/8 Onroad/Offroad WATERPROOF (0.11s/7.4V/30kg)
Backorder
We'll source this item exclusively for you, even during temporary shortages.
Lead time: 14 to 45 business days
Accepted payment methods
In stock, ready to ship
Drop us a line, we'll help right away
Questions? We're here for you personally.
Usually reply within minutes during opening hours.
Description
SRT Servo CL6030 1/10 & 1/8 Onroad/Offroad WATERPROOF (0.11s/7.4V/30kg)
KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications
& Titanium & Steel gears for precision and durability
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty
| Item no | 4.8V | 6.0V | 7.4V | Gear | Motor | Case |
dimension (mm) |
Weight (G) |
|||
|
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| CL6030 | 0.13 | 19.0/263.9 | 0.12 | 25.0/347.2 | 0.11 | 30.0/416.6 | Titanium & Steel | Coreless | semi-metal | 41.3*20.5*38.3 | 69.0 |
Application :
1/10 2 4WD / Off-road
1/10 / Off-road
1/10 Off-road
1/8 Electric/ Car On-road
1/8 / Off-road
Electric/BOAT
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
Control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degrees
operating speed (4.8v): 0.13 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.11 sec/60 degrees at no load
stall torque (4.8v): 19.0kg.cm (263.9 oz/in)
stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
potentiometer drive: direct drive

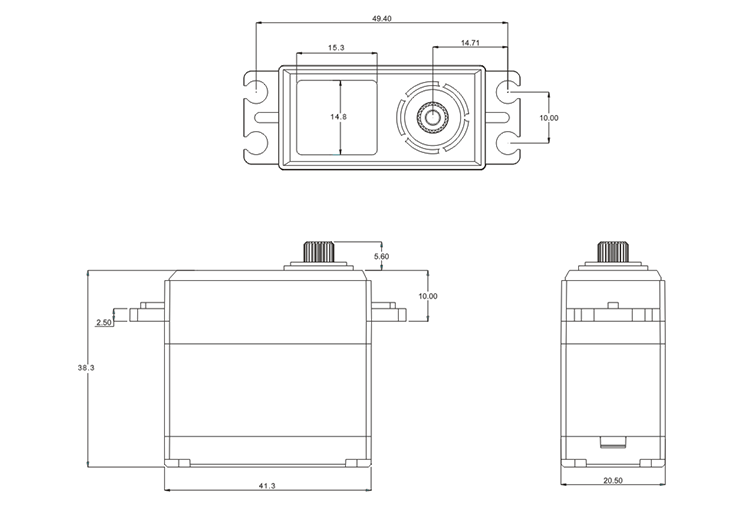

dimensions: 41.3x20.5x38.3 mm /1.63x0.8x1.51 in
weight: 69.0g (2.43 oz)
Connector wire length: jr 300 mm
