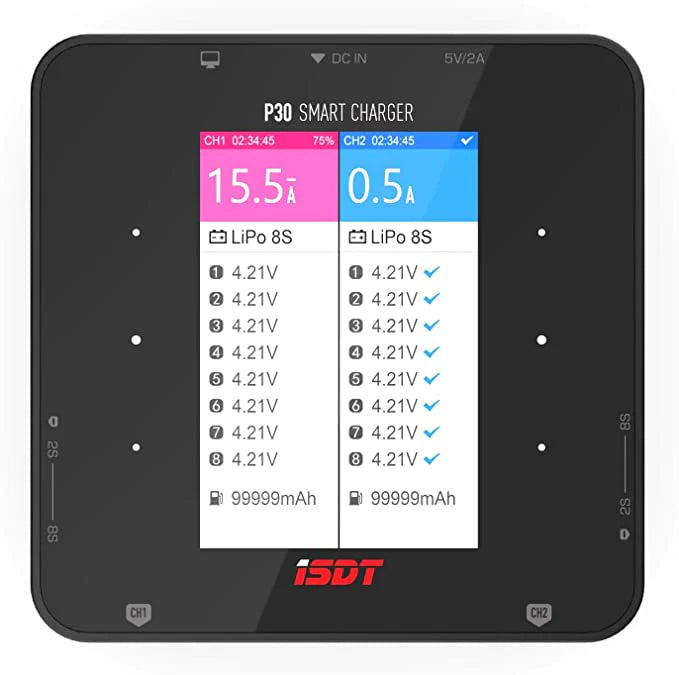

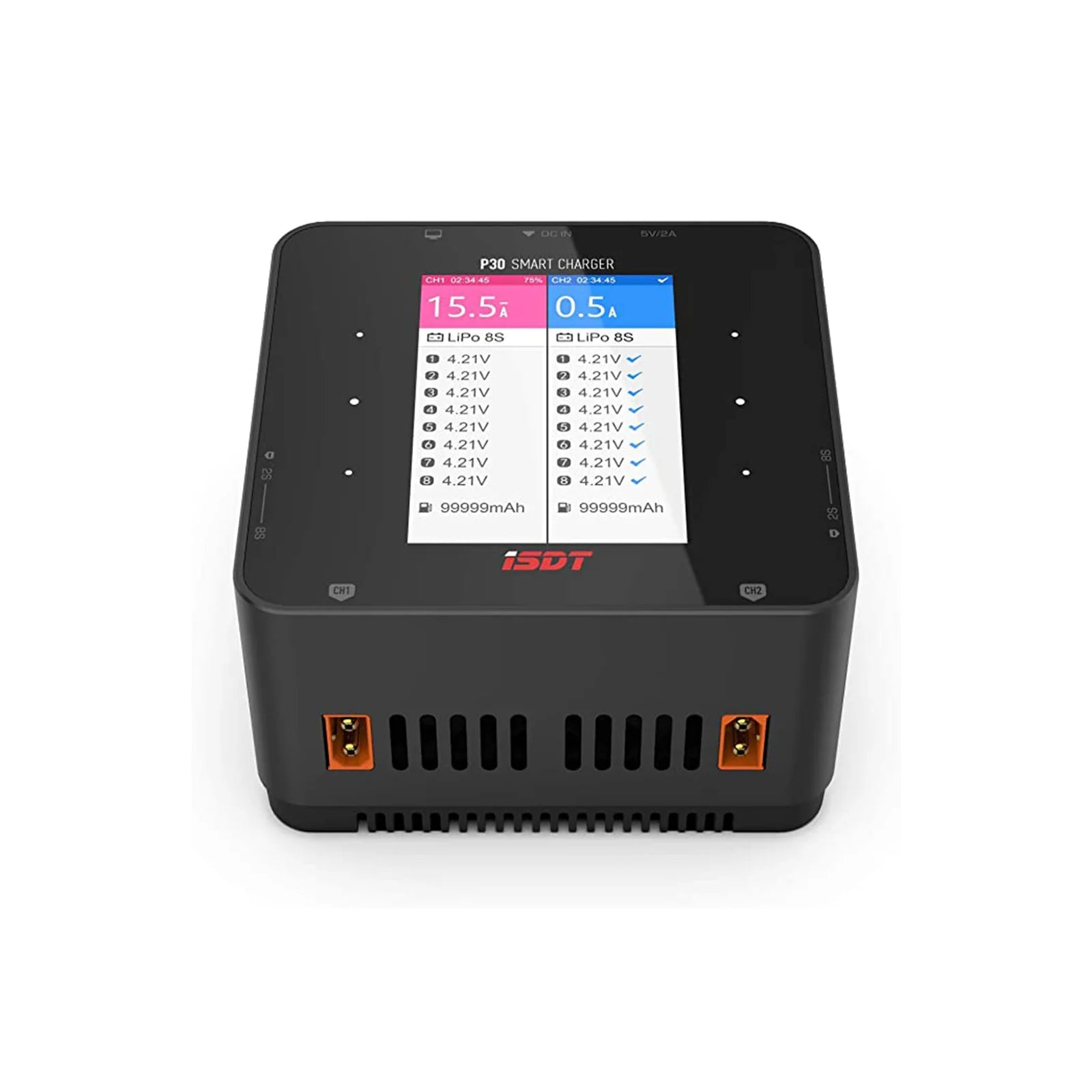

ISDT P30 Bluetooth Lipo Battery Charger - 1000W / 2 x 30A / 2 Dual Channel

ISDT P30 Bluetooth Lipo Battery Charger - 1000W / 2 x 30A / 2 Dual Channel

✔【 Synchronous high-performance dual channel with intelligent charging] 】The intelligent high-speed processor delivers parameter interference to each port. No problem with a maximum charging power of up to 1000 W for a single connection. Choose ISDT, powered by innovation.

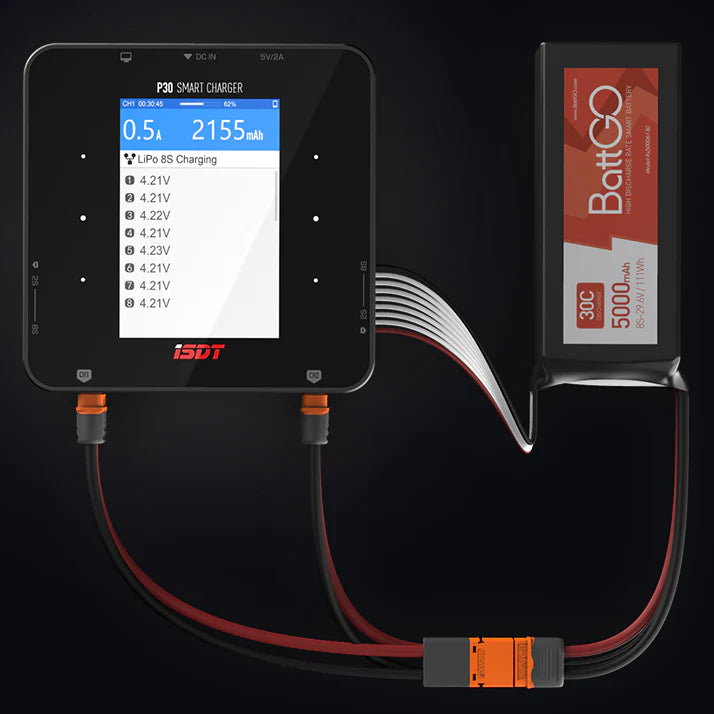

✔【 Synchronous parallel charging 】Built-in dual-channel high-speed processor synchronous balancing. Maximum parallel charging power up to 1500W. P30 delivers a charging current range of 30A to 50A.

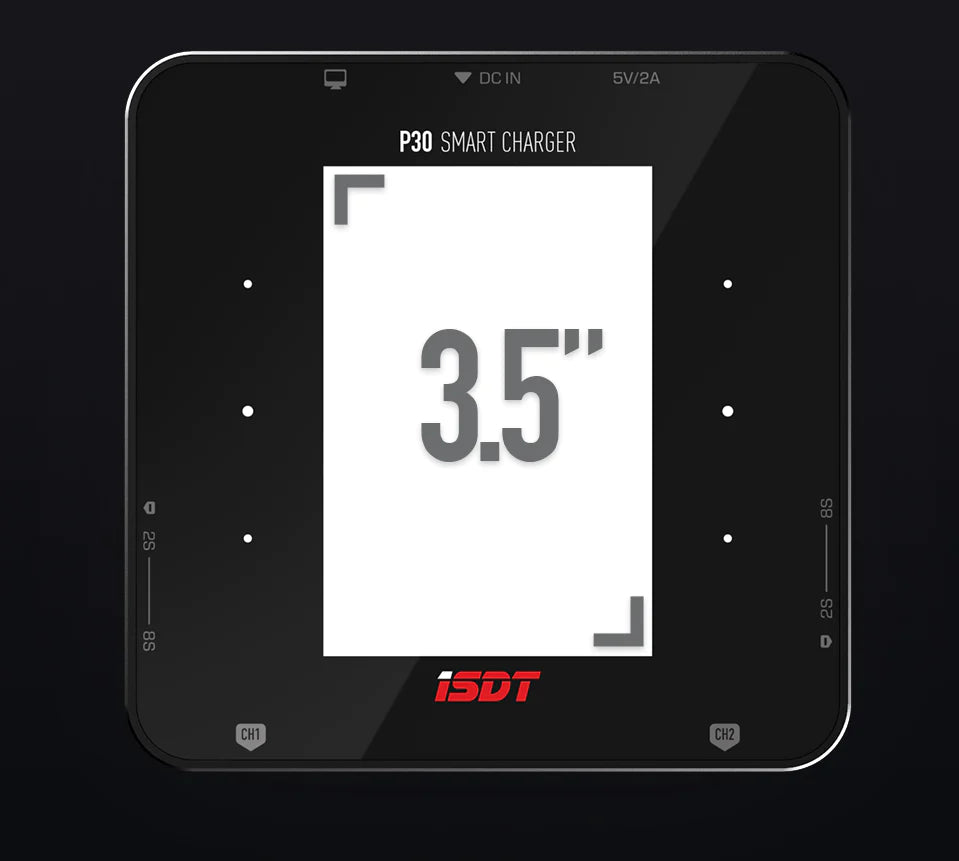

✔【 3.5 inch Super IPS LCD screen, resolution 320 x 480 】 The largest display ever in the ISDT charger. A sharp contrast to everything else. Including extensive information such as power, capacity, internal resistances and more.

✔【 New Heat Dissipation Design 】The newly designed convection air duct cleverly uses the internal structure to build a heat dissipation channel, which reduces unnecessary losses during the exhaust process and greatly improves heat dissipation efficiency.

✔【 Remote Control 】The P30 has a Bluetooth connection function. After connecting with the mobile phone, you can update the firmware or view detailed information such as charging information, battery voltage, battery internal resistance, etc. in the app. You can also set preset charging tasks to replace the hassle of charging with button charging.


Specification:

Input voltage: DC 10~34V

Output voltage range: DC 1~34V

Maximum input current: 60A

Charging current: 0.2~30A x 2

Discharge current: 0.2~3.0A x 2

DC current: 1.5A/cell max.

Maximum discharge power: 30W x 2

Maximum charging power: single channel maximum 1000W, entire machine maximum 1500W.

Abnormal battery voltage alarm: support

Serial Number Setting Error Alarm: Support

Supported battery type and string quantity: LiFe, Lilon, LiPo 1~8S, LiHv 1-7S, Pb 1-12S, NiMH, Cd 1-16S

Input interface: XT90i (compatible with XT90)

Output interface: XT60i (compatible with XT60)

Display Type: 3.5 inch 320×480 IPS LCD

Operating temperature: 0~40℃

Storage temperature: -20℃~60℃

Dimensions: 110 x 110 x 65mm.

Weight: 730g

Contents of the box:

1 x ISDT P30 Charger
