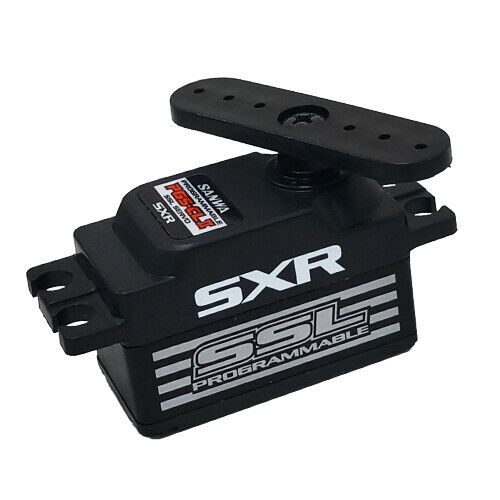

Sanwa PGS-CL2 Low Profile SXR Response (0.08s/16.6kg/7.4V) Coreless Servo - 107A54516A

Sanwa PGS-CL2 Low Profile SXR Response (0.08s/16.6kg/7.4V) Coreless Servo - 107A54516A

by Sanwa
SKU 107A54516A
Availability:
Out of stock
Sold out
$73.00 - $73.00
$73.00
$73.00 - $73.00
$73.00

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

Sanwa PGS-CL2 Low Profile SXR Response (0.08s/16.6kg/7.4V) Coreless Servo - 107A54516A

Details:

Speed ​​(7.4V) 0.08 sec/60°
Speed ​​(6.0V) 0.11 sec/60°
Torque (7.4V) 16.6kg/cm
Torque (6.0V) 14.7kg/cm
Dimensions 40.5x20.5x26.5mm
Weight 49.6g

  • Programmable Servo to be compatible with SSL & Telemetry at Launch
  • Setting Adjustment by wireless from Radio
  • Setting adjustment to connect servo with setting gear
  • Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

  • FH5U: SXR(Sanwa Xtreme Response) Mode Compatible
  • SSL compatible programmable servo

# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

  • PGS Setting Gear Compatible
  • Super Response (SSR) Mode Compatible
  • High Response (SHR) Mode Compatible
  • Li-Po 2 CELL compatible
  • Low Profile
  • High torque type
  • Brushless motor
  • Full aluminum case
  • Full Metal Gear (Strengthening Gears)
  • AL Heat Sink
  • Black Harness
Setting items:
  • SSL-CH (SSL Channel Setting)
  • STRETC (Stretcher Adjustment)
  • BOOST (Boost Adjustment)
  • D-Band (Dead Band Adjustment)
  • MV-MID (Middle Torque Adjustment)
  • MV-END (Later Torque Adjustment)
  • BREAK (Break Adjustment)
  • MV-HOLD (Power Adjustment at whole area)
  • MV-FRQ (Feeling Adjustment at whole area)
  • MAX-PW (Max Duty Adjustment)
  • PGS servo explanation

# Setting Gear is necessary for ◎setting.

}
