SRT Servo BH9022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

SRT Servo BH9022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

by SRT
SKU BH9022
Availability:
3 in stock, ready to be shipped
$104.00 - $104.00
$104.00
$104.00 - $104.00
$104.00

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo BH9022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Superior Holding Speed
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty


Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
BH9022 0.085 18.0/249.9 0.065 20.0/277.7 0.06 22.0/305.5 Titanium & Alu Brushless  all-metal 40.0*20.0*38.0 70.0




Application :
SRT BH9022 HV Brushless Servo1/10 1/8 Electric/ Car         SRT BH9022 HV Brushless Servo1/10 1/8 Nitro/ Car                SRT BH9022 HV Brushless Servo 1/10 1/8 Off-road
SRT BH9022 HV Brushless Servo 1/10 On-road                   SRT BH9022 HV Brushless Servo Helicopter


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive

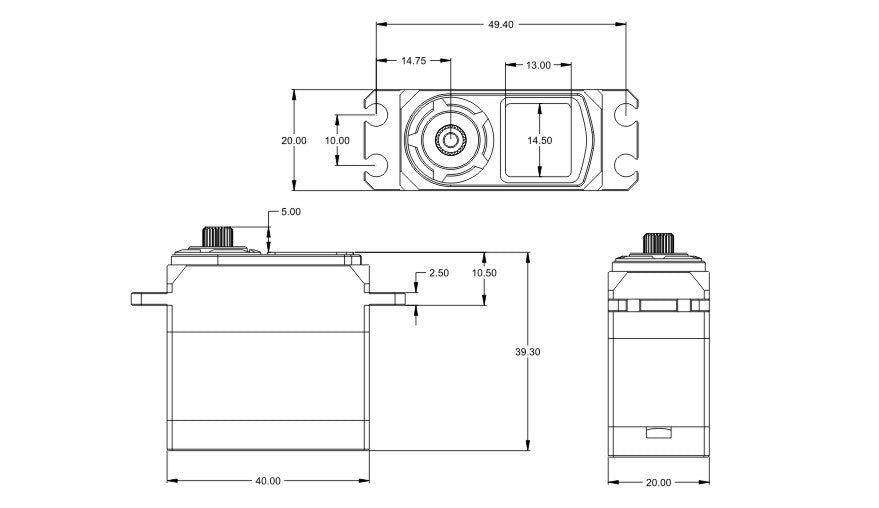

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 300 mm

}
