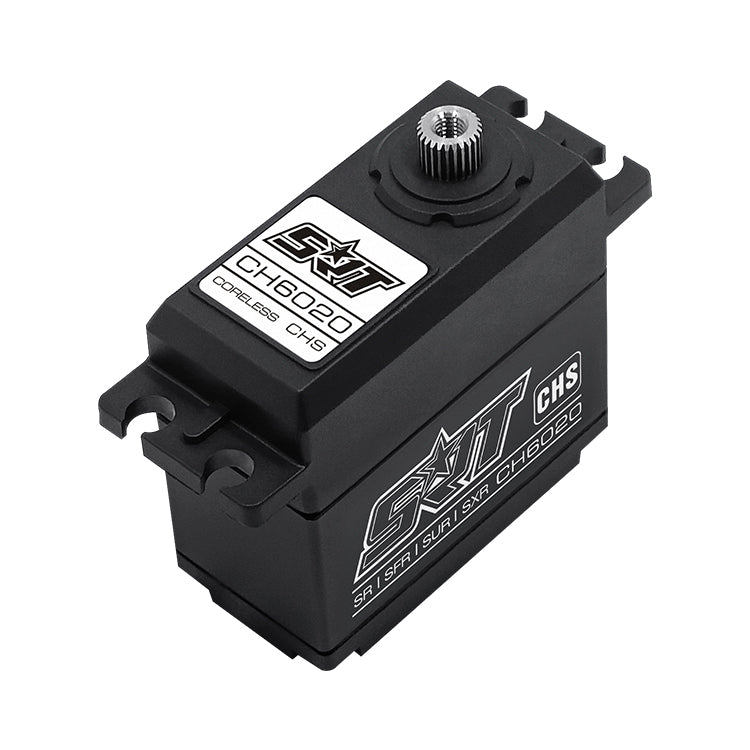

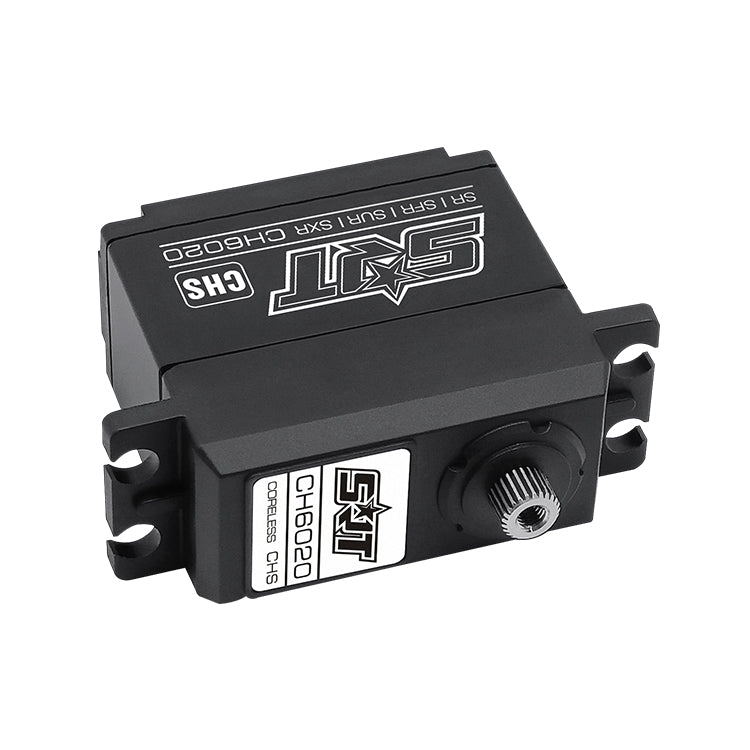

SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless

SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless

by SRT
SKU CH6020
Availability:
6 in stock, ready to be shipped
$62.00 - $62.00
$62.00
$62.00 - $62.00
$62.00

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption

& Supporting SR, SFR, SUR, SXR multiple ultra high speed modes

& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH6020 0.12 14.0/194.4 0.10 18.0/250.0 0.09 20.0/277.7 Titanium & Alu Coreless  Semi-metal 41.3*20.5*38.3 69.0


Application :
SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 Electric/ Car         SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 Nitro/ Car               SRT CH6020 1/8Scale Car HV CORELESS Servo 1/8  2 4WD /Off-road
SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 /Off-road             SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 /Off-road               SRT CH6020 1/8Scale Car HV CORELESS Servo 1/8 Off-road



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal

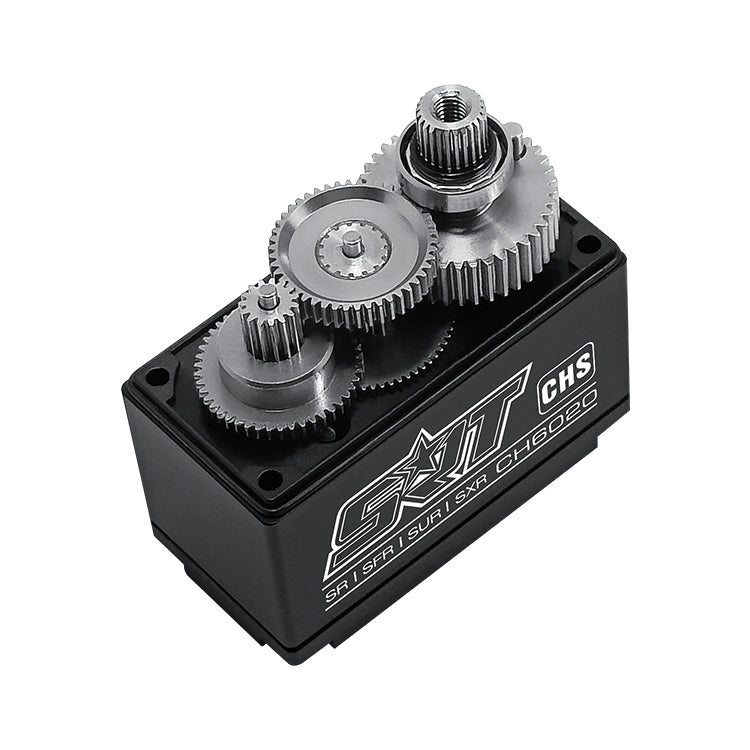

Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive

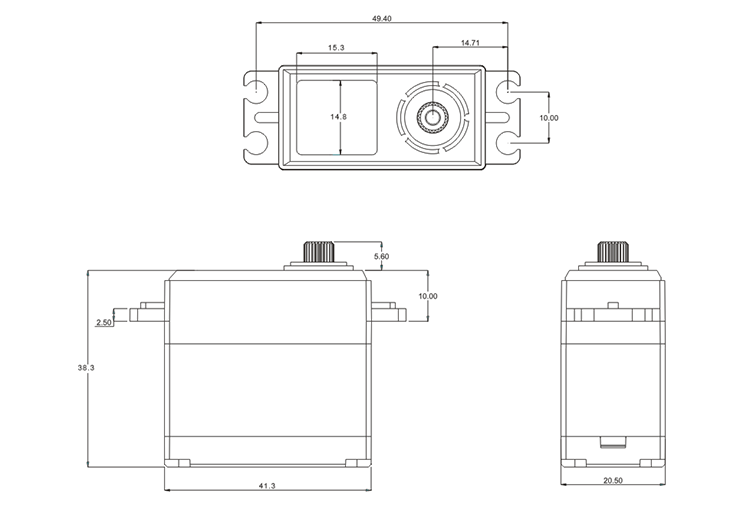

dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm

}
