SRT Servo T45 1/10 & 1/8 Offroad HV (0.13s/8.4V/45kg) Coreless

SRT Servo T45 1/10 & 1/8 Offroad HV (0.13s/8.4V/45kg) Coreless

by SRT
SKU T45
Availability:
2 in stock, ready to be shipped
$82.00 - $82.00
$82.00
$82.00 - $82.00
$82.00

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo T45 1/10 & 1/8 Offroad HV (0.13s/8.4V/45kg) Coreless

KEY FEATURES

& Ideal for 1/8 on road scale applications

& Superior Holding Torque

& Incredible efficiency and low power consumption

& Standard dimension make it perfect for vehicles that can benefit from a high quality servo

& CNC Machined aluminum case for exceptional cooling

& Programmable High torque Coreless servo

& SSR mode compatible

& 25T output shaft

& 2 μsec Dead Band

& 1-Year Limited Warranty


Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
T45  0.16 36.0/499.9  0.14 40.0/555.5  0.13


45.0/625.0

 Steel & Aluminum Coreless  all-metal


40.7*20.5*39.0

 81.0


Application :

SRT T55 HV Coreless servo Air plane                SRT W45 HV Coreless Waterproof Servo 1/10/8  / Off-road           SRT W45 HV Coreless Waterproof Servo 1/10/8 Off-road

SRT W45 HV Coreless Waterproof Servo1/10/8 / Off-road


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Steel & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
operating speed (8.4v): 0.13 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (499.9 oz/in)
stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
stall torque (8.4v): 45.0kg.cm (625.0 oz/in)
potentiometer drive: direct drive

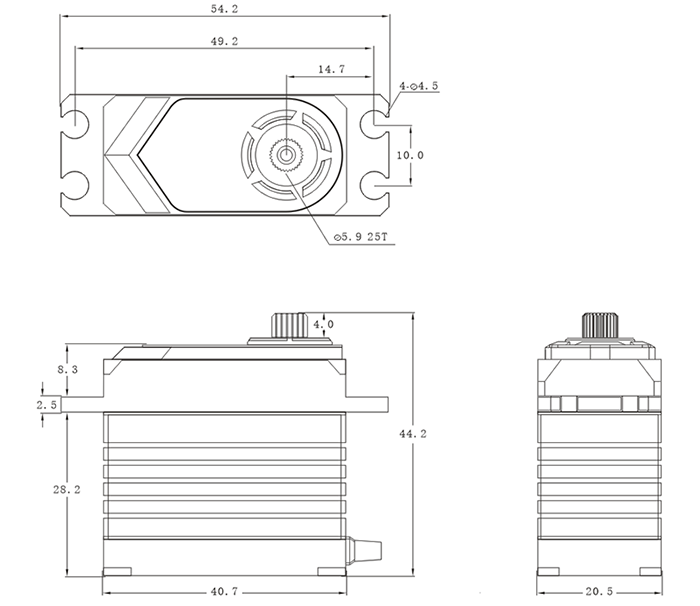

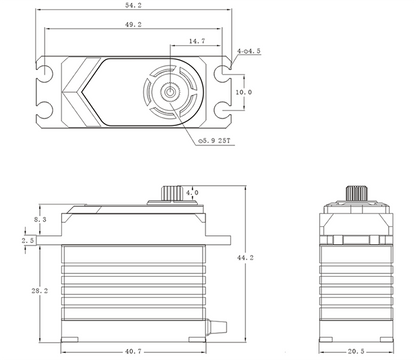

dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
weight: 81.0g (2.86 oz)
connector wire length: jr 300 mm

}
