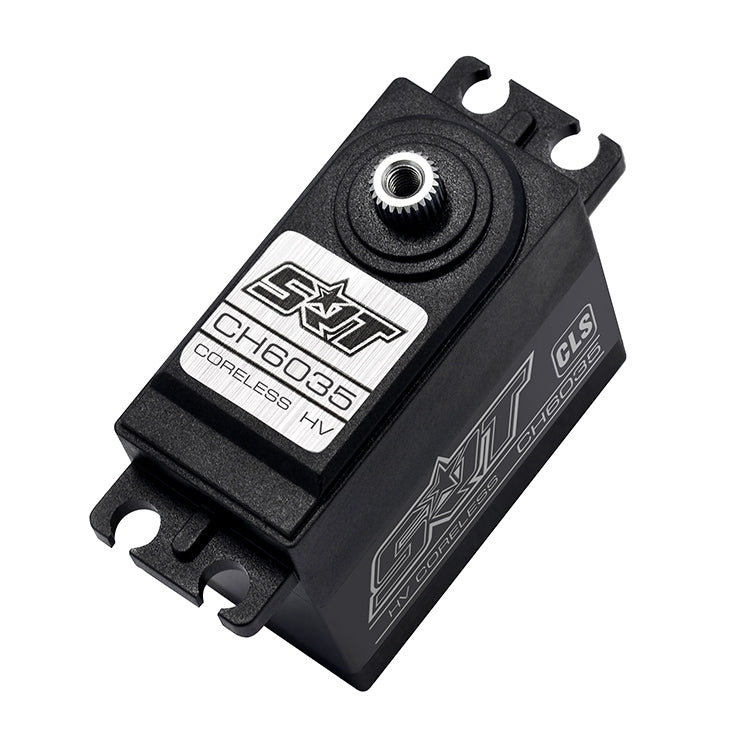

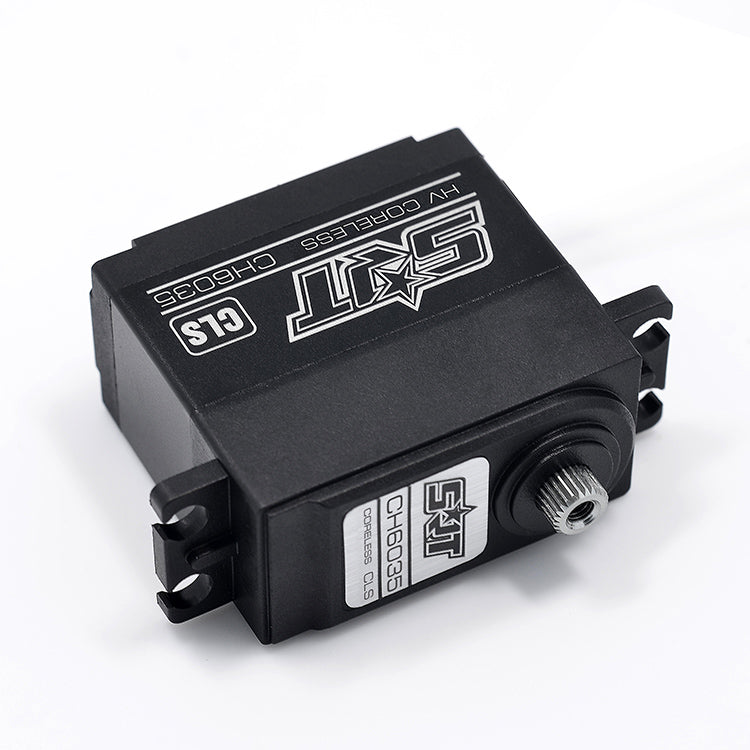

SRT Servo CH6035 1/5 Onroad/Offroad HV (0.14s/8.4V/35kg) Coreless

SRT Servo CH6035 1/5 Onroad/Offroad HV (0.14s/8.4V/35kg) Coreless

by SRT
SKU CH6035
Availability:
2 in stock, ready to be shipped
$65.00 - $65.00
$65.00
$65.00 - $65.00
$65.00

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH6035 1/5 Onroad/Offroad HV (0.14s/8.4V/35kg) Coreless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH6035 0.16 30.0/416.6 0.15 32.0/444.4 0.14 35.0/486.1 Titanium & Steel Coreless  Semi-metal 40.7*20.5*38.5 75.0


Application :
1/5 Electric/ Car         1/5 Nitro/ Car                  1/5 Off-road
 1/5 On-road              Air plane


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless

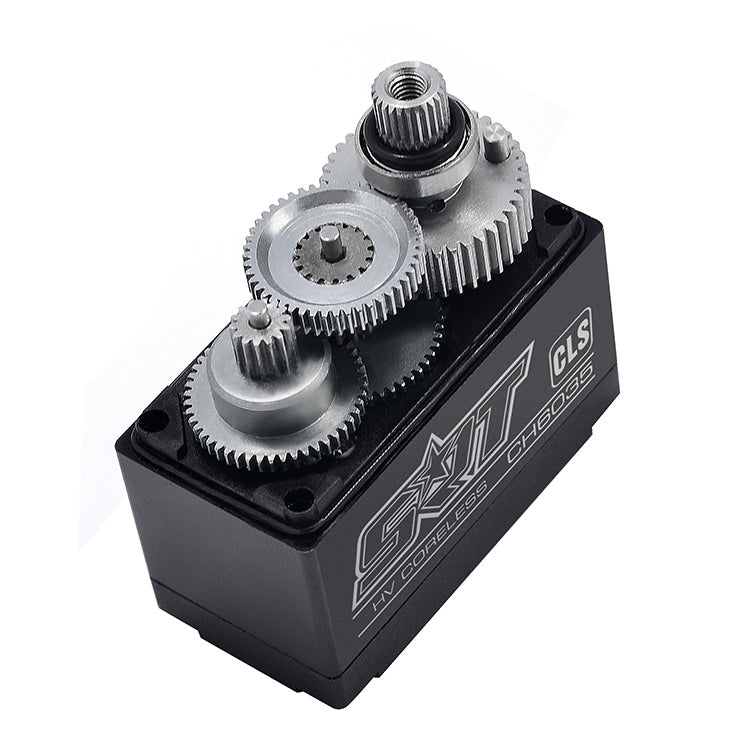

Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive

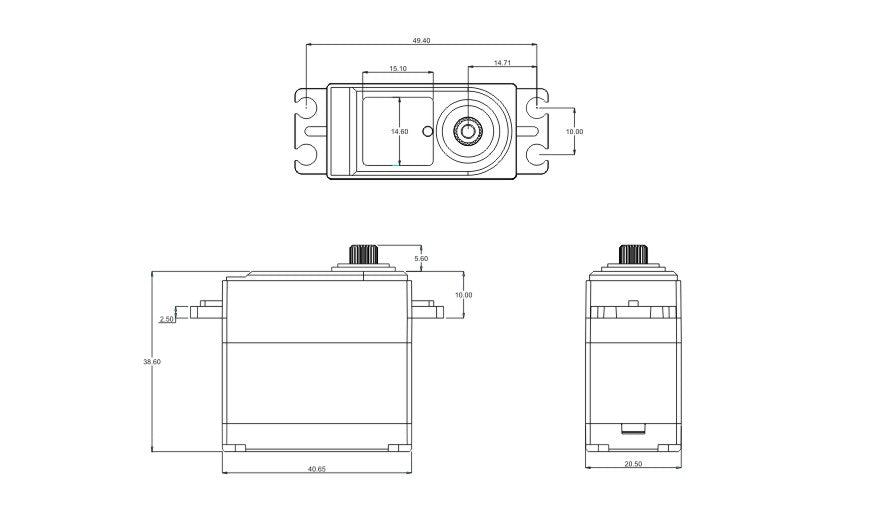

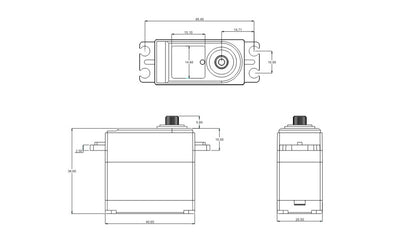

dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 75.0g (2.65 oz)
connector wire length: jr 250 mm

}
